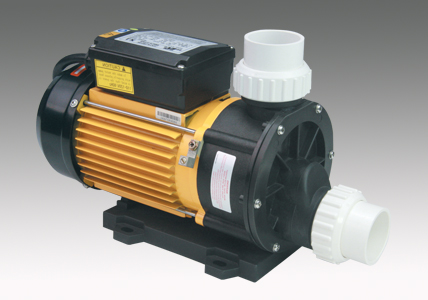

LX Whirlpool bath pump/spa pump(TDA50/TDA75/TDA100/TDA120/TDA150/TDA200)
Feature:
LX Whirlpool Bath Pump: TDA series hot tub spa pump is most mature product and the safety certificate is highly completed. Liquids part is made of high reinforce engineering plastic; applied mechanical seal type ensure watertight in long-time continuous operation. The high reinforce engineering plastic base is vibration-resistance and corrosive-resistance. The liquid will be drained once motor is off.
Motor: Air cooling motor. The Material of motor frame is aluminum; Motor is under low-noise and less-vibration and durability that are specialized for hydro massage bathtub or spa pump. Insulation class F, protection IPX5, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience. Pneumatic switch control is available.
Certificate: 1、CCC Safety certificate
2、CE certificate EU
3、TUV certificate Germany
4、UL certificate America
5、SAA certificate Australia
6、RoHS approval
Application:
1. it's suitable for hydro massage tube or spa system and circulation or filter of swimming pool system.
2. it's used to transmit and cycle sea-water for fish pond water which is a preferred sea-water pump.
3. Weak corrosive liquid (weak acid and weak) without solid granules. liquid temperature: +5-60℃
4. it's suitable for circulating water equipment that use for workshop's cooling-down.
Instance:
1.5-8 nozzles for single bathtub:TDA75、TDA120（UL certificate especially for American and Canada market）
2.9-16 nozzles for double bathtub: TDA150、TDA200
3.Circulation system for fishery pool: TDA35、TDA50、TDA75
4. Integration swimming pool's filter equipment. TDA200
Selection Notice:
1. The number of nozzle/request flow/pressure etc.
2. Applied region's voltage and frequency (220-240V/50HZ、220-240V/60HZ is available)
3. Applied region's request for safety certificate.
4. Request for fitting size(48.5mm,50mm… is available)
5. Type of plug. (No Plug or Europe plug, UL plug… is available.)
LX Whirlpool bath pump/ spa pump(TDA50/TDA75/TDA100/TDA120/TDA150/TDA200):
|
Model
|
Power
kw / HP
|
Max head
m
|
Max flow
L / min
|
Fitting size
mm
|
Weight
kg
|
Dimension
mm
|
Nozzles
|
Qty/20＂
|
TDA35
|
0.25 / 0.35
|
8
|
150
|
48.5 or 50
|
5.8
|
350*180*235
|
2-4
|
2040
|
|
TDA50
|
0.37 / 0.50
|
8
|
180
|
48.5 or 50
|
6.6
|
350*180*235
|
2-4
|
2040
|
|
TDA75
|
0.55 / 0.75
|
9.5
|
300
|
48.5 or 50
|
8.0
|
380*180*235
|
5-7
|
1865
|
|
TDA100
|
0.75 / 1.00
|
10
|
320
|
48.5 or 50
|
8.7
|
380*180*235
|
6-8
|
1865
|
|
TDA120
|
0.90 / 1.20
|
10.5
|
360
|
48.5 or 50
|
9.0
|
380*180*235
|
6-8
|
1865
|
|
TDA150
|
1.10 / 1.50
|
14
|
380
|
48.5 or 50
|
11.5
|
435*220*245
|
9-12
|
1280
|
|
TDA200
|
1.50 / 2.00
|
15
|
450
|
48.5 or 50
|
12.8
|
435*220*245
|
14-16
|
1280
|
|
