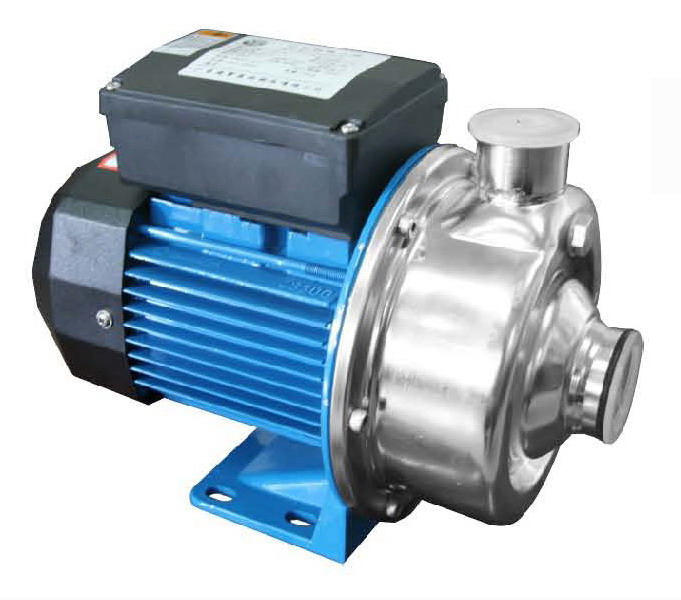

DWK025-037 centrifugal pump
Centrifugal Pump: DWK series is single-stage stainless steel pump; the liquid part is made of SUS304,.They have the characteristics of large flow, environmental protection, cost efficiency. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class B, protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.
Feature:
Impeller structure: open impeller
Certificate: 1、China CCC certificate
Application:
1. Convey solid suspension in food processing as vegetable, meat or fish cleaning.
2. Convey liquid with solid particle for cleaning machinery in industry to clean bottle, can or glassware etc
3. Transfer for general dirty water in dishwasher process etc.
Operation conditions:
1. Liquid temperature: +5℃-+60℃
2. Max ambience temperature: +50℃
3. Max pressure: 3 bar
4. Max suction head: No self-priming
Guide for model selection:
1. Request for the flow and pressure
2. Applied region’s voltage and frequency: single-phase: 220-240V/50Hz；220V-240V/60Hz；110-120V/60Hz is available; three-phase: 380
415V/50Hz；380-415V/60Hz is available.
3. Applied region's request for safety certificate
4. Confirm the bore of outlet and inlet.
5. The mechanical seal configurations is selective for normal water, pure water or hot water type.
6. Plug's type and length (no plug, Chinese plug. Europe plug, UL plug is available)
|
model
|
power
P2（kw）
|
head
（m）
|
flow
（m3/h）
|
bore
|
weight
（kw）
|
dimension
|
Qty/20＂
|
|
220V/50Hz
|
380V/50Hz
|
inlet
|
outlet
|
|
DWK025
|
DWK025T
|
0.25
|
10-6.5
|
1-6
|
G1或G1/4
|
G1
|
6.5
|
295*190*230
|
2170
|
|
DWK037
|
DWK037T
|
0.37
|
12-7
|
1-6
|
G1或G1/4
|
G1
|
7.5
|
295*190*230
|
2170
|
|
