LX Whirlpool bath pump,Hot tub bathtub pump
(LX Pump: Top Quality Pump In China)
Feature:

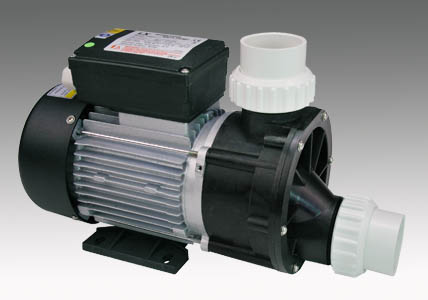

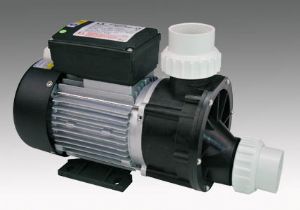

LX Whirlpool Bath Pump: DH1.0 hot tub spa pump is a good and inexpensive, with high economical and practical cost-effective products. Liquids part is made of high reinforce engineering plastic; applied mechanical seal type ensure watertight in long-time continuous operation. The inlet is in beneath (same as TDA series); the liquid will be drained once motor is off. This product specifications is single, only one model.
Motor: Air cooling motor is suitable for Europe. The motor frame and base is conjoined that the Material is aluminum; Motor is under low-noise and less-vibration and durability that are specialized for hydro massage bathtub or spa pump. Insulation class B, protection IPX5, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience. Pneumatic switch control is available.
Certificate: 1、CCC Safety certificate
2、CE certificate EU
3、RoHS approval
Application:
1. it's suitable for hydro massage tube.
2. it's used to transmit and cycle sea-water for fish pond water which is a preferred sea-water pump.
3. Weak corrosive liquid (weak acid and weak) without solid granules. liquid temperature: +5-60℃
4. it's suitable for circulating water equipment that use for workshop's cooling-down.
Instance:
1.6-8 nozzles for single bathtub:DH1.0
Selection Notice:
1. Applied region's voltage and frequency (220-240V/50HZ、220-240V/60HZ is available)
2. Applied region's request for safety certificate.
3.Request for fitting size(48.5mm,50mm… is available)
4. Type of plug. (No Plug or Europe plug, UL plug… is available.)
Model
|
Power
kw / HP
|
Max head
m
|
Max flow
L / min
|
Fitting size
mm
|
Weight
kg
|
Dimension
mm
|
Nozzles
|
Qty/20"
|
DH1 . 0
|
0.75 / 1.0
|
10.5
|
340
|
48.5 or 50
|
8..5
|
375*180*250
|
6-8
|
1620
|
|
