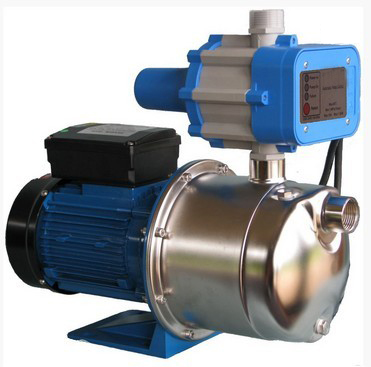

ABJZ-BK series Booster pump

Product features：
Thermal protector：single phase
Insulation：F
Protection：IP55
Max suction：9m

Operation and application：
Auto-control stainless steel jet pump consist of a self priming jet pump and auto-controller to control the pump automatically through auto controller.If the pump is under situation such as waterless water high voltage,pipe blockage etc., Auto controller receives the signal and cut off power to protect the pump effectively. When pump is running, the controller maintains a constant pressure to minimize water hammer effect.

Working conditions：
Medium temperature：0~+50℃
Environmental temperature：≤50℃
Max.working pressure：0.6MPa
