LX CVF Series Stainless steel centrifugal pump, CVF Series Stainless steel centrifugal pump, LX Stainless steel centrifugal pump:
( LX Pump: Top Quality Pump In China )
1) Feature:

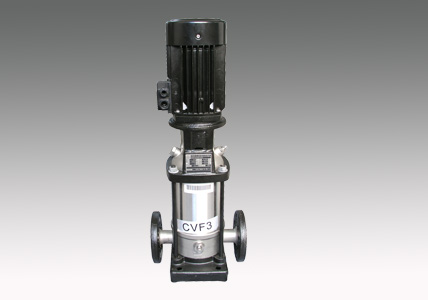

Stainless steel centrifugal pump: CVF is a kind of multifunctional products. It conveys various medium from tap water to industrial liquid at different temperature and different flow rate and pressure. This pump is consist of a base and a pump head, the pressure-resistant cylinder and flow passage components fixed between pump head and in/outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom in the same plane (inline type). Applied dedicated ridge type mechanical seals ensure watertight in long-time continuous operation. Use advanced design of Hydraulic model under stable operation and high efficiency; The material of outlet and inlet is SUS304; the liquid part is made of SUS304,. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage;
Motor: The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class F, protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.
Certificate: 1. China CCC certificate
2. TUV certificate Germany
Connection method: 1.Thread (union) 2. Cutting ferrule joint (PJE) 3. Flange (DIN-FGJ)
2) Application:
1. Water supply: water filter and Conveying in waterworks, pressure boosting of main pipe, pressure boosting of high-rise building.
2. Industrial pressure boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3. Industrial liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose.
4. Water treatment: Ultra filtration system, separator, swimming pool.
5. Irrigation: Farmland irrigation, dripping irrigation.
6. Liquid of weak acids and weak alkali.
3) Operation condition:
1. liquid temperature: Normal temperature type: -15℃~+70℃,heat water type: +70℃至+120℃
2. Max ambience temperature: +50℃
3. Max pressure: 30 bar
4. Max suction head: No self-priming
5. The maximum elevation: ≤
1000m
4) Aprication:
1. Request for the flow and pressure
2.The mechanical seal configurations is selective for normal water, pure water or hot water type.
3.Applied region’s voltage and frequency: single-phase: 220-240V/50Hz;220V-240V/60Hz;110-120V/60Hz is available; three-phase: 380-415V/50Hz;380-415V/60Hz is available.
4. Applied region’s request for safety certific4. Confirm the bore of outlet and inlet.
5. Connection method: Thread (union), Cutting ferrule joint (PJE), Flange (DIN-FGJ) is available.
Model
|
P2(KW)
|
(V)
|
Model
|
P2(KW)
|
(V)
|
CV9(F)1s-2
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-2
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1s-3
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-3
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1s-4
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-4
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1s-5
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-5
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1s-6
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-6
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1s-7
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-7
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1s-8
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-8
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1s-9
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-9
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1s-10
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-10
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1s-11
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-11
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1s-12
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-12
|
0.75
|
1*220-240V/3*380-415V
|
CV9(F)1s-13
|
0.37
|
1*220-240V/3*380-415V
|
CV9(F)1-13
|
0.75
|
1*220-240V/3*380-415V
|
CV9(F)1s-15
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1-15
|
0.75
|
1*220-240V/3*380-415V
|
CV9(F)1s-17
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1-17
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-19
|
0.55
|
1*220-240V/3*380-415V
|
CV9(F)1-19
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-21
|
0.75
|
1*220-240V/3*380-415V
|
CV9(F)1-21
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-23
|
0.75
|
1*220-240V/3*380-415V
|
CV9(F)1-23
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-25
|
0.75
|
1*220-240V/3*380-415V
|
CV9(F)1s-25
|
1.5
|
1*220-240V/3*380-415V
|
CV9(F)1s-27
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-27
|
1.5
|
1*220-240V/3*380-415V
|
CV9(F)1s-30
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-30
|
1.5
|
1*220-240V/3*380-415V
|
CV9(F)1s-33
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-33
|
2.2
|
3*380-415V
|
CV9(F)1s-36
|
1.1
|
1*220-240V/3*380-415V
|
CV9(F)1s-36
|
2.2
|
3*380-415V
|
四、Selection notice: |
